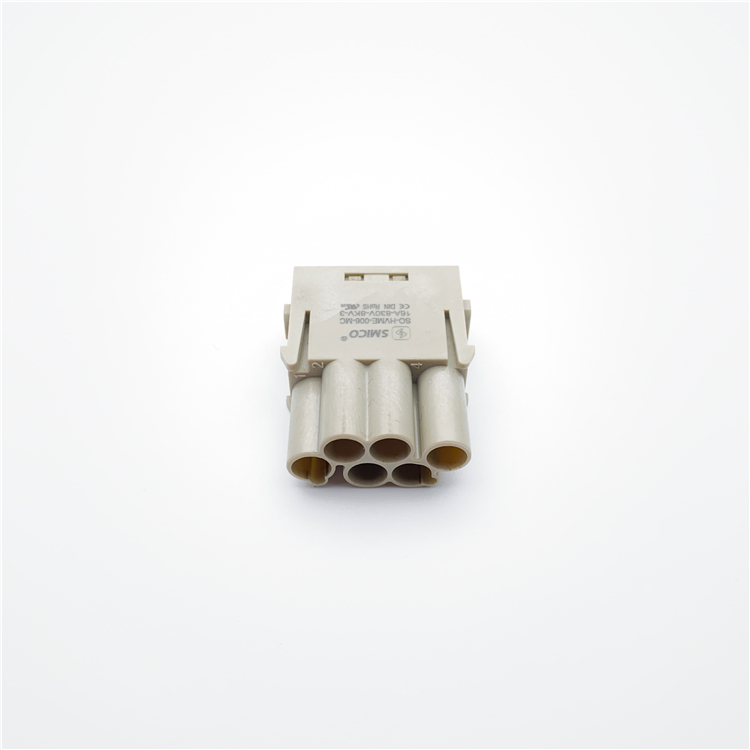

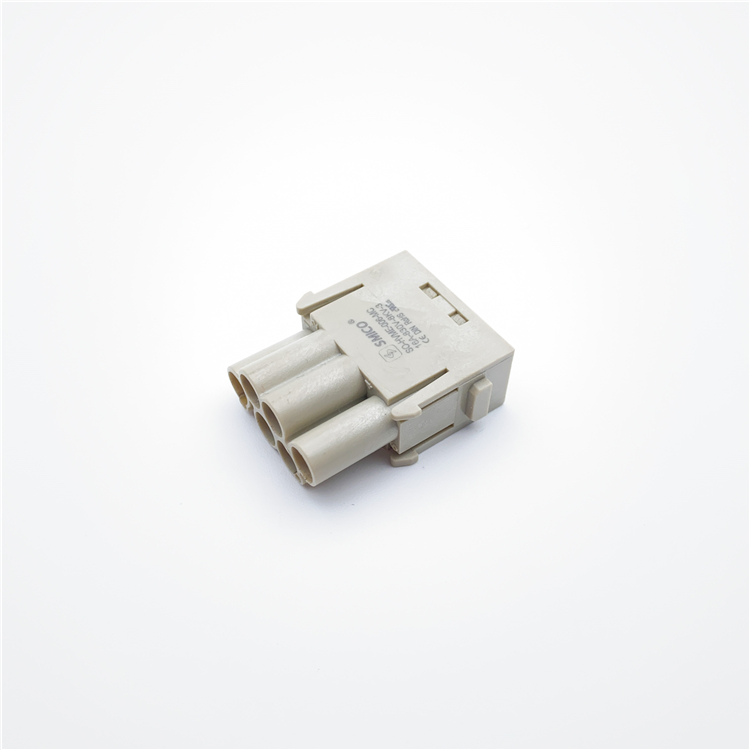

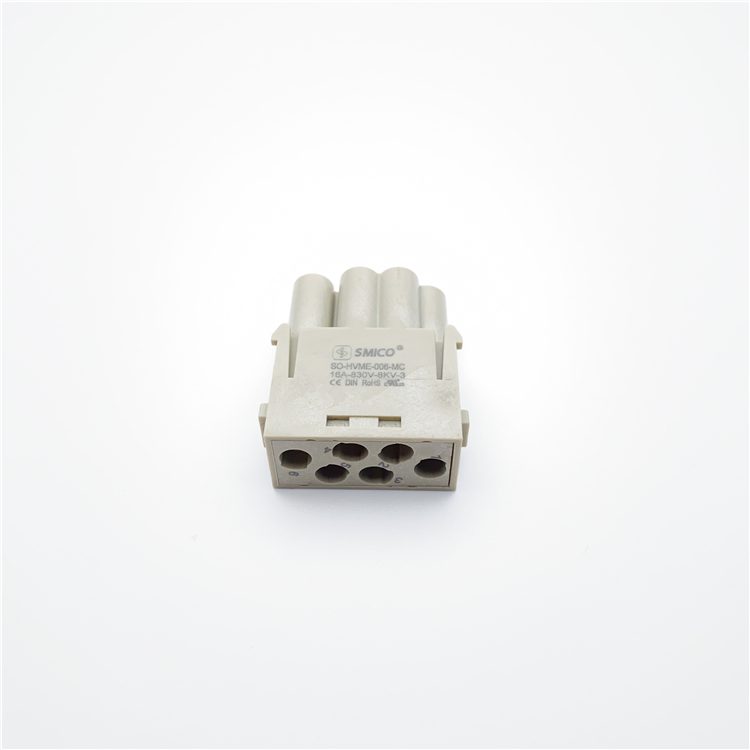

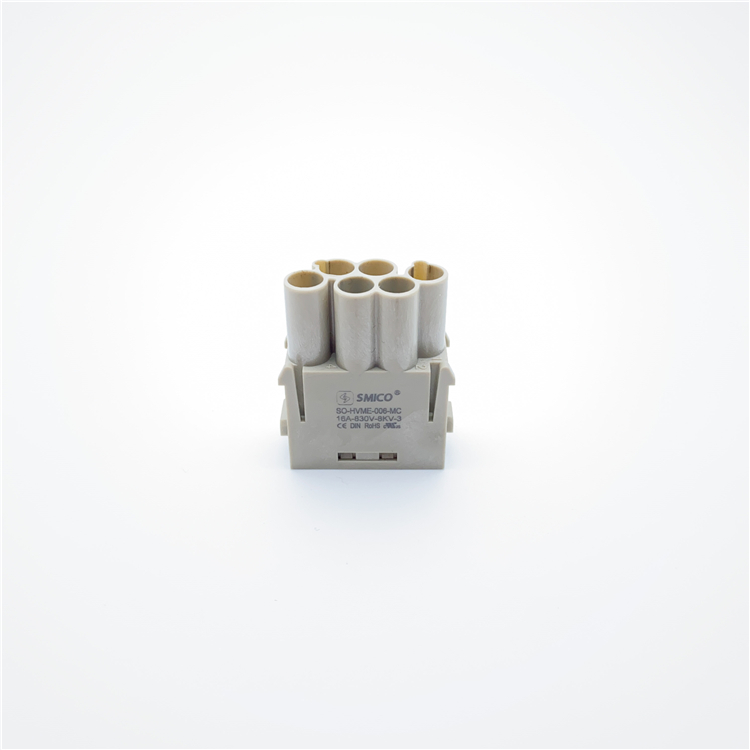

HVME Module 6 Pin Heavy Duty Electrical Connector
HVME Module 6 Pin Heavy Duty Electrical Connector
HVME Module 6 Pin Heavy Duty Electrical Connector
HVME Module 6 Pin Heavy Duty Electrical Connector
HVME Module 6 Pin Heavy Duty Electrical Connector
HVME Module 6 Pin Heavy Duty Electrical Connector

HVME Module 6 Pin Heavy Duty Electrical Connector

Part
SO-HVME-006-MC
Product Certification
UL CUL CE ROHS DMT
Order No.
09140063041

Standard module for power up to 16A. H-Quick Lock or Crimp terminal available.

inquiry

Product Detail

Inserts
Number of contacts 6
Electrical dataacc. to EN 61 984
---Rated current 16A
---Rated voltage 830V
---Rated impulse voltage 8kV
-Pollution degree 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
hard-gold plated
Contact resistance ≤1mΩ
Crimp terminal
---mm2 0.14-4mm2
