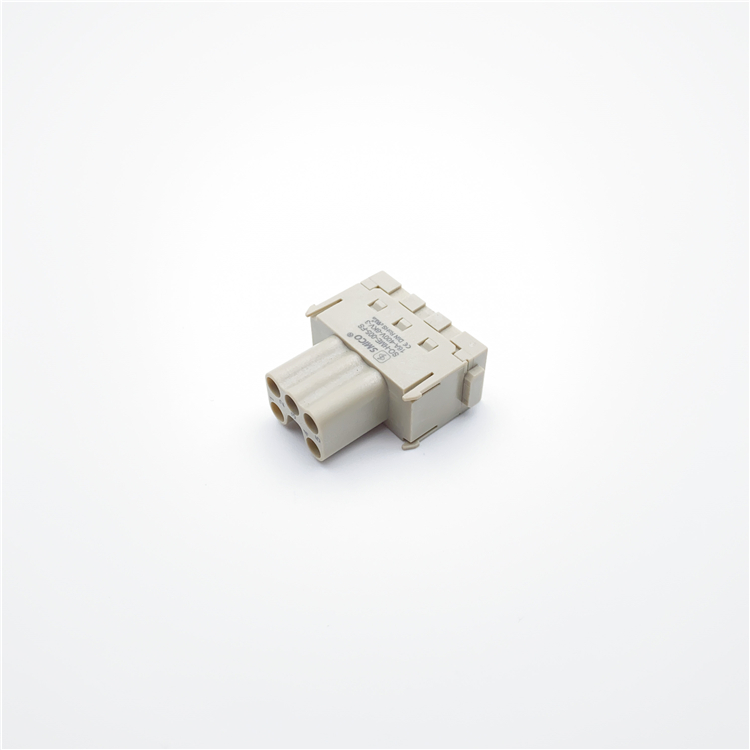

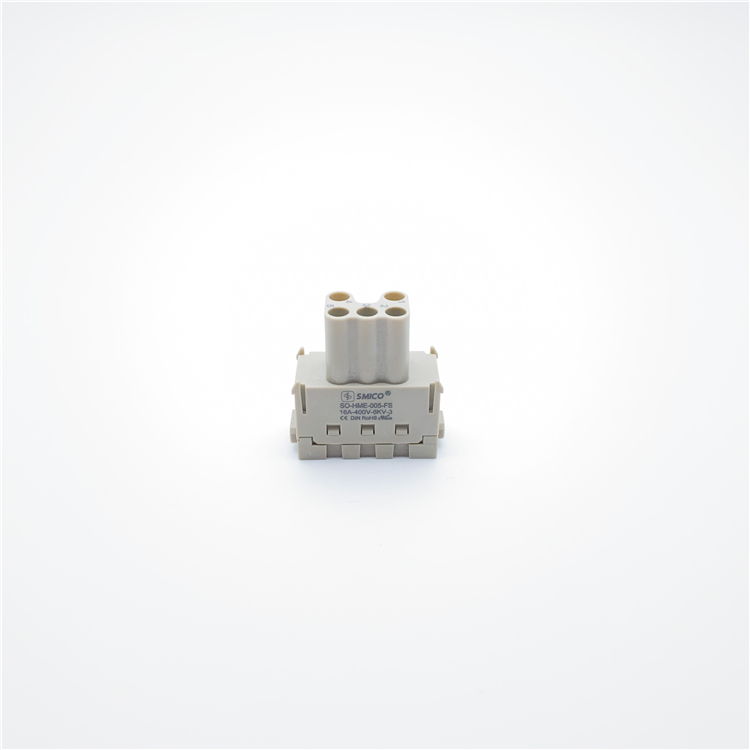

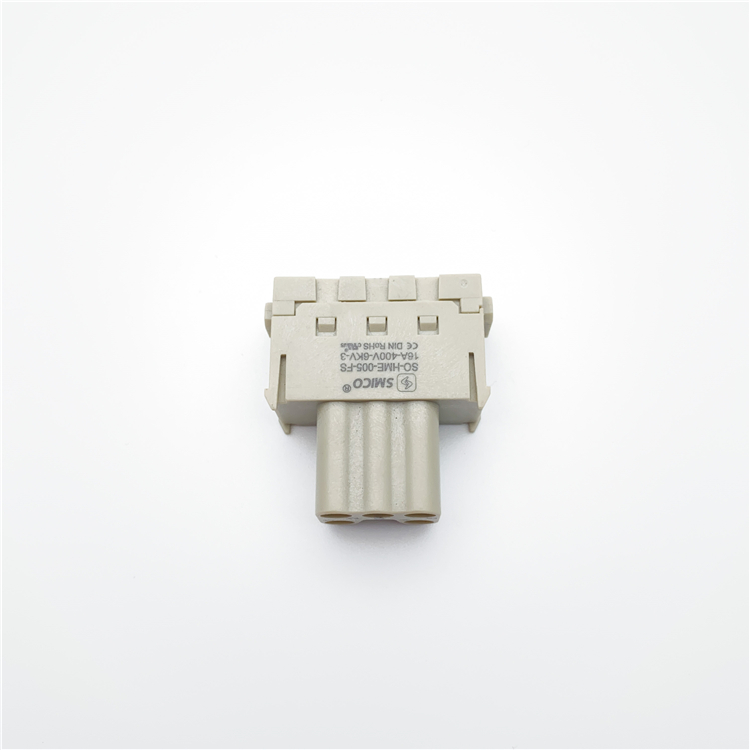

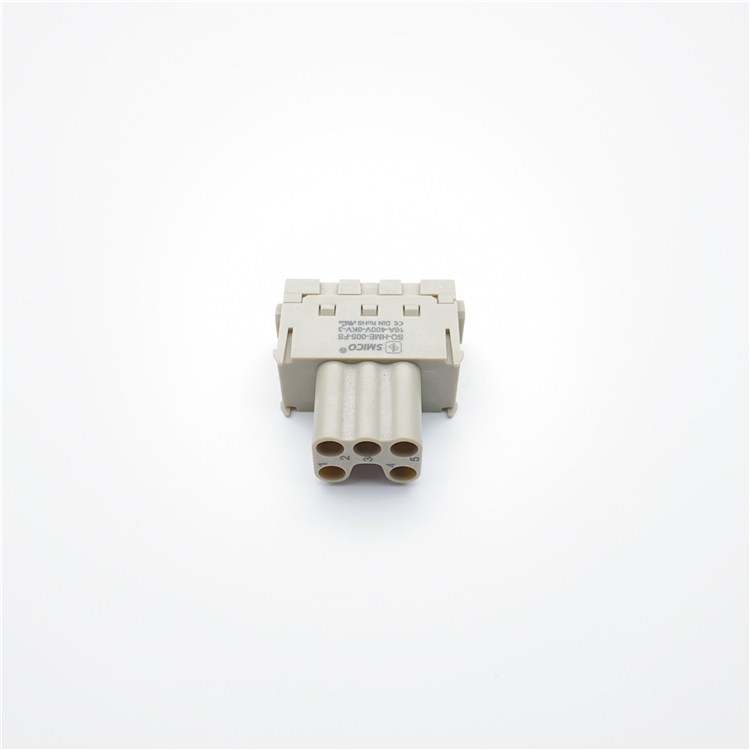

HME Module 5 Pin Heavy Duty Electrical Connector
- Part
- SO-HME-005-FS
- Product Certification
- UL CUL CE ROHS DMT
- Order No.
- 09140052716
Standard module for power up to 16A. H-Quick Lock or Crimp terminal available.
Product Detail
| Inserts | |
| Number of contacts | 5 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 400V |
| ---Rated impulse voltage | 6kV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-2.5mm2 |
