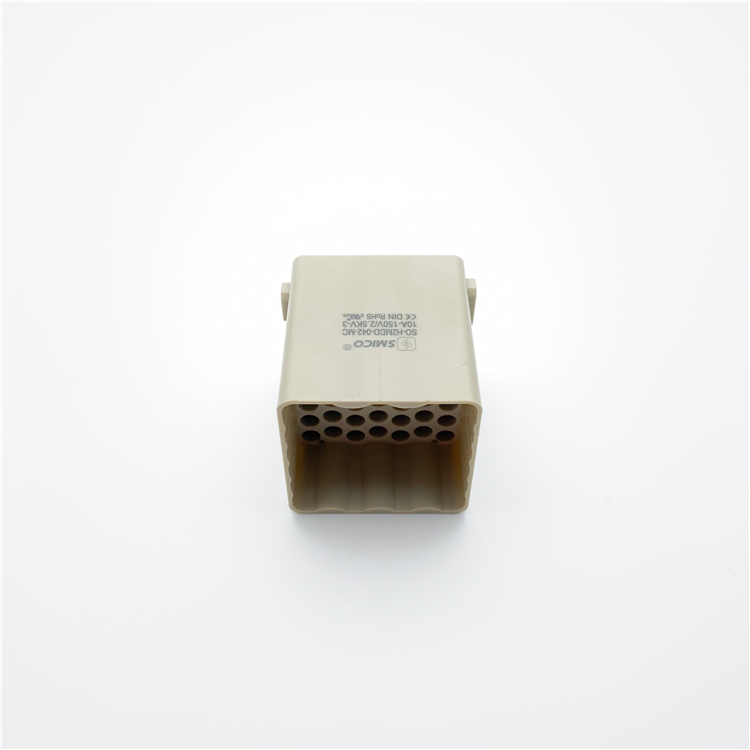

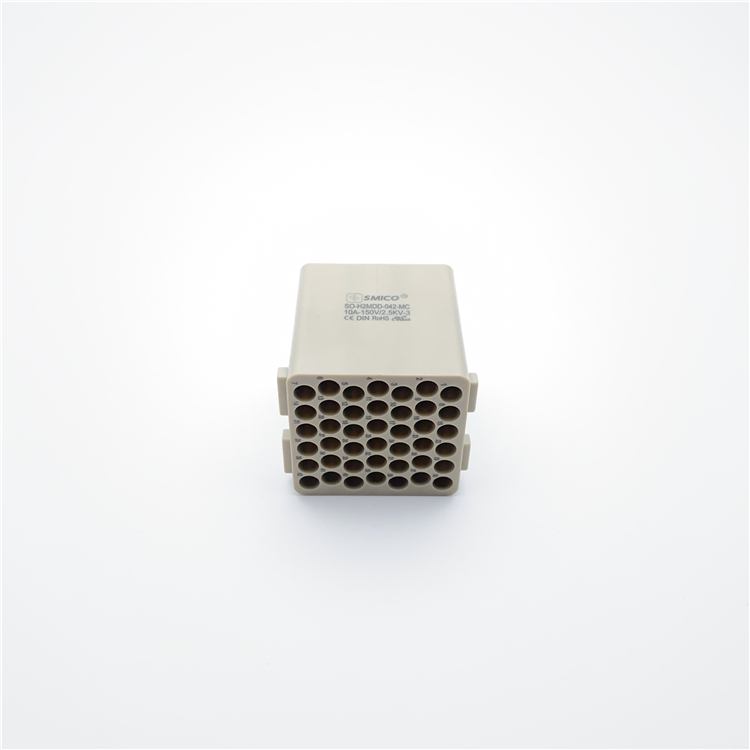

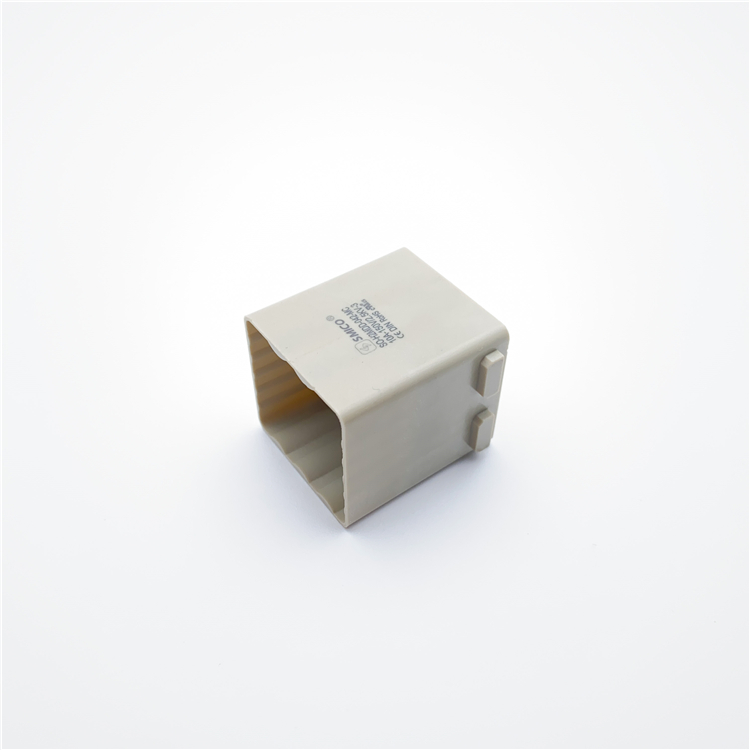

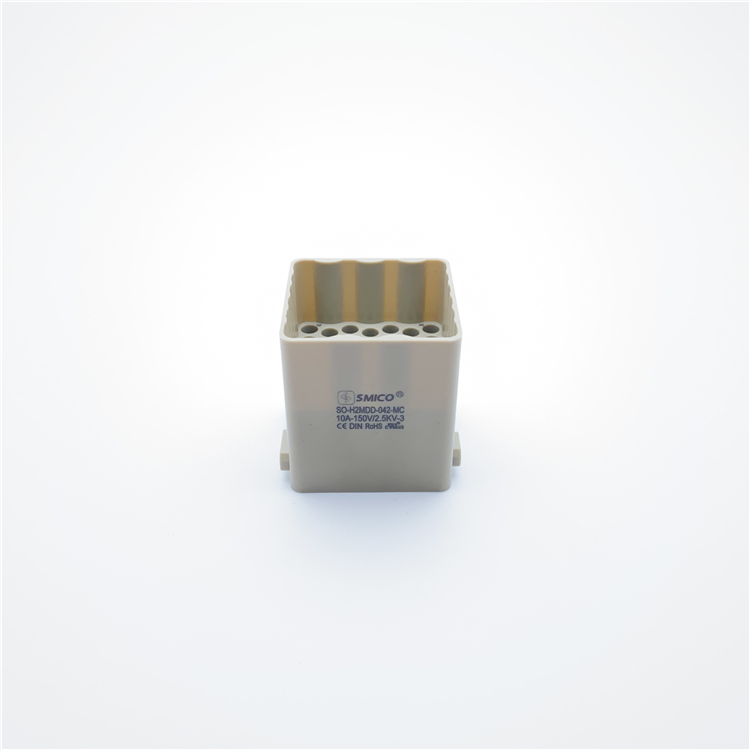

Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin
Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin
Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin
Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin
Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin
Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin

Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin

Part
SO-H2MDD-042-MC
Product Certification
UL CUL CE ROHS DMT

Suitable for HD Crimp contacts. Higher density of crimp contacts. Standard module for power up to 10A. Also suitable as reliable signal connector.

inquiry

Product Detail

Inserts
Number of contacts 42
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 150V
---Rated impulse voltage 2.5kV
---Pollution degree 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---mm2 0.14-2.5mm2
---AWG 26-14
