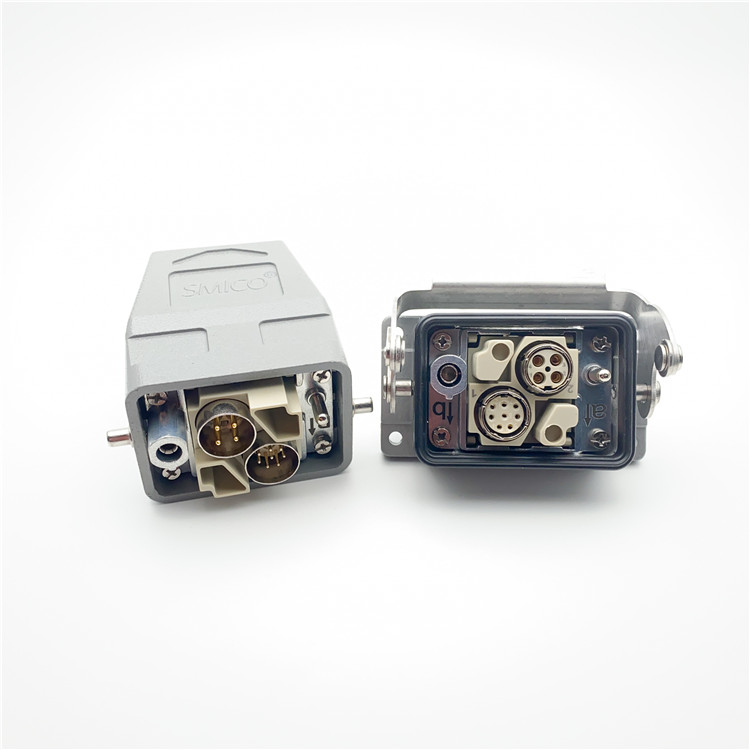

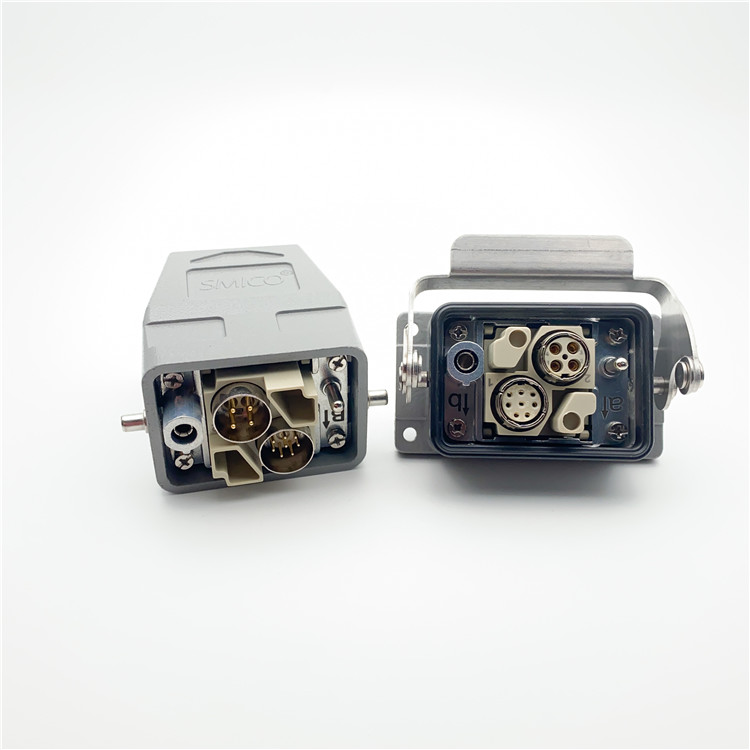

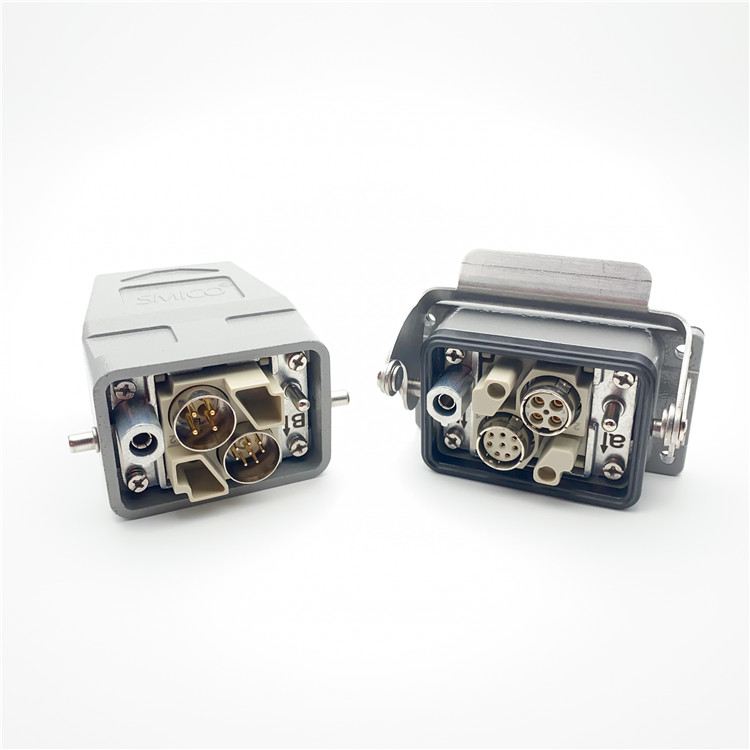

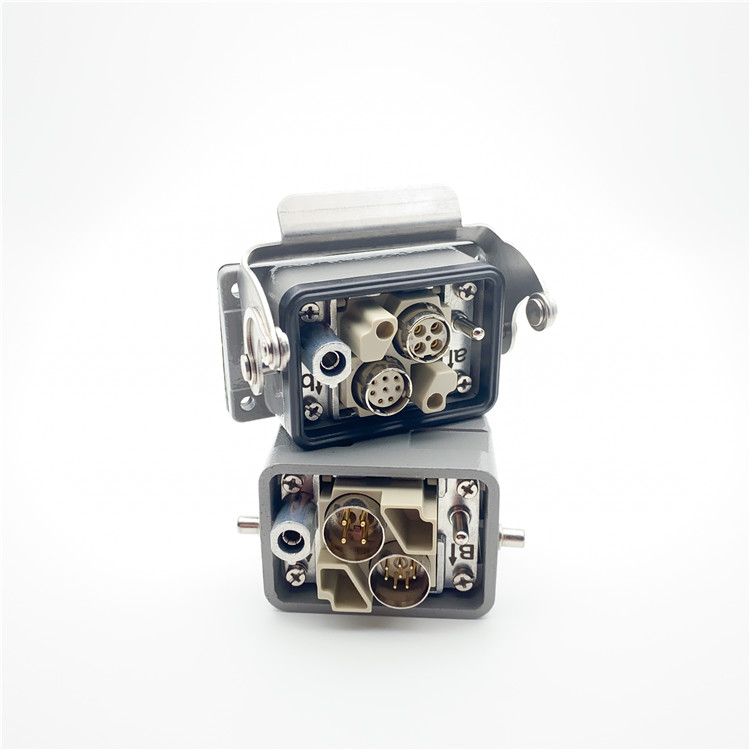

Shielding Coax Module Circular Connector
- Part
- EMC-004-MC
- Product Certification
- CE,UL,CUL,ROHS,DMT
- Order No.
- 09150043013
Shielding bus separate from housing potential. Suitable for the transmission of sensitive signals. The four pole H Quintax contact
Product Detail
| Q-Coax contacts | |
| Number of contacts | |
| －Q-Coax | 4+shielding |
| Electrical data acc. to EN 61 984 | |
| －Q-Coax | 10A 50V 0.8kv 3 |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated impulse voltage | 0.8kv |
| Pollution degree | 3 |
| Material | |
| －Insulator | polycarbonate |
| －Outer conductor | zinc alloy |
| Contact resistance | ≤4mΩ |
| Limiting temperatures | -40℃...+85℃ |
| Flammability acc. to UL 94 | V0 |
| Outer surface finish | nickel |
| Cable diameter | 3-9.5mm |
