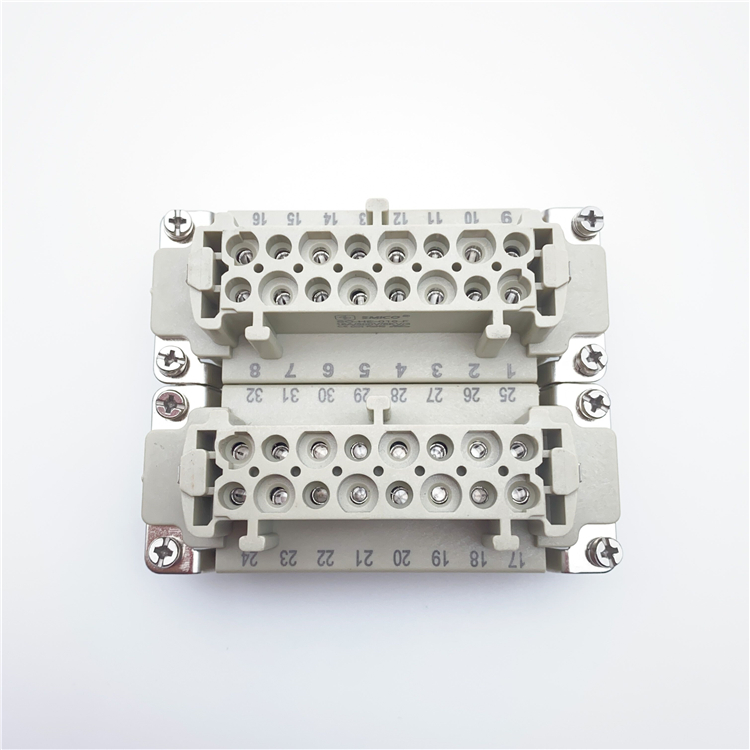

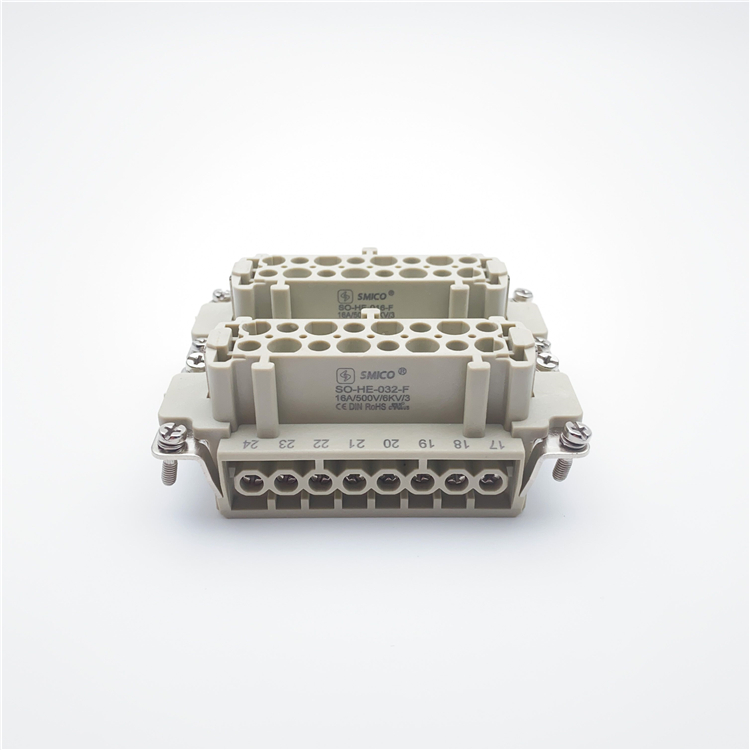

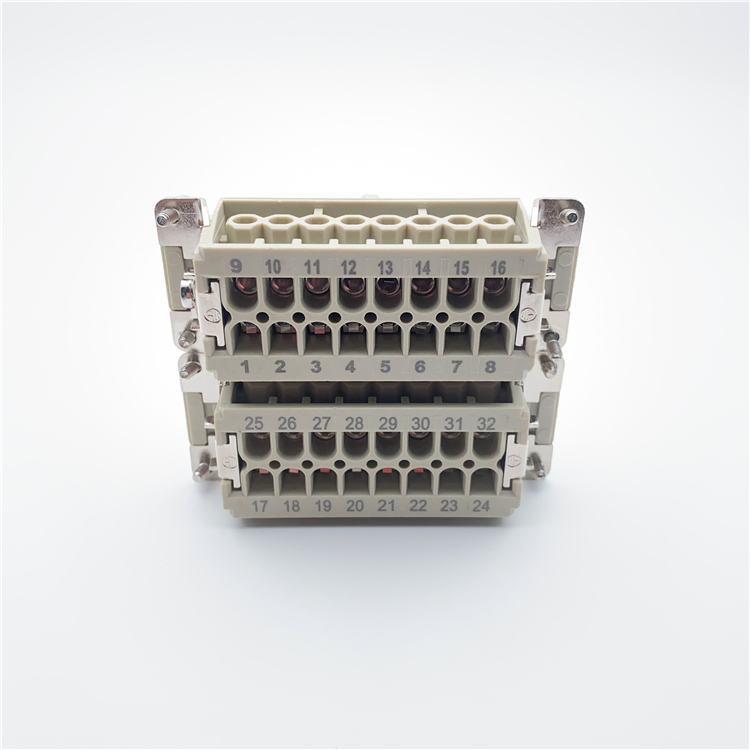

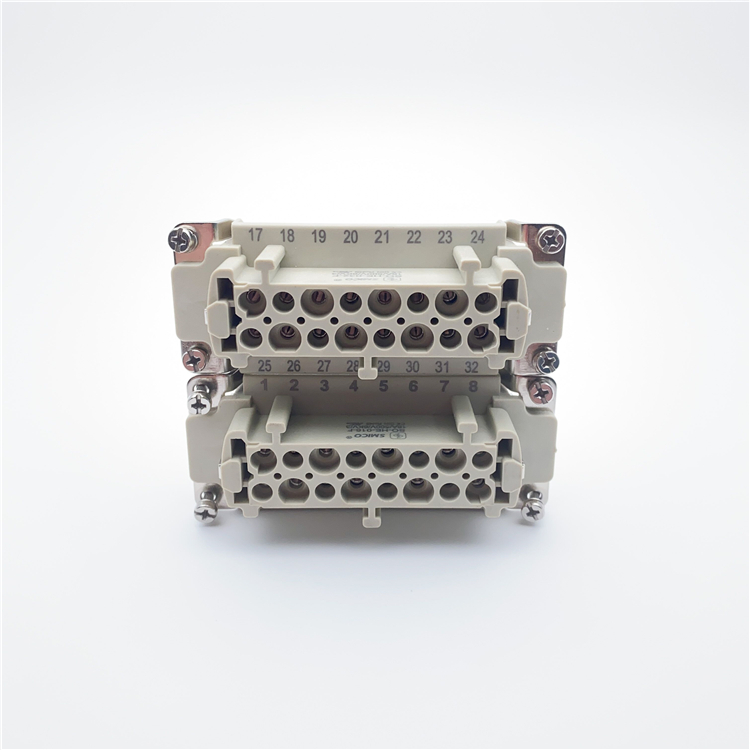

He 32B size 032 Pin female Connectors match with Han E 32 Sti S 32 Pin Cable Connector
- Part
- SO-HE-032-F
- Product Certification
- UL CUL CE ROHS DMT IEC-61984
- Order No.
- 09330162711
Covers wide range of cross sections, Screw termination with wire protection
Product Detail
| Inserts | Suitable Shell:32BHood/Housing |
| Number of contacts | 32 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |
