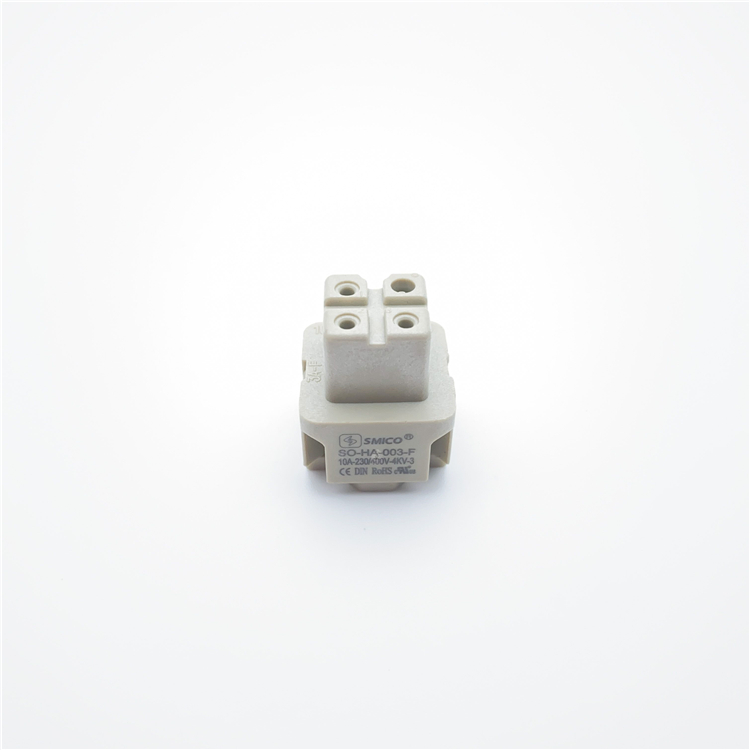

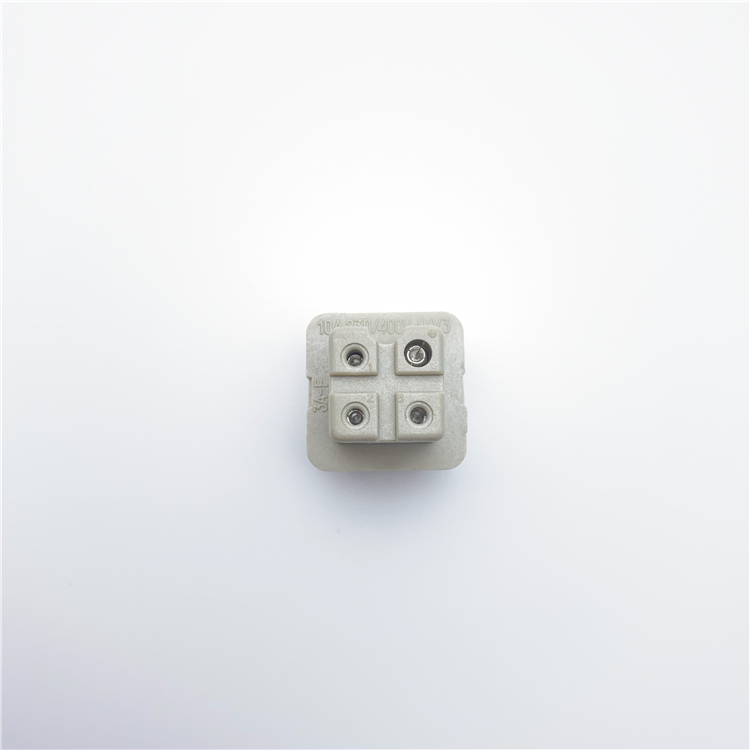

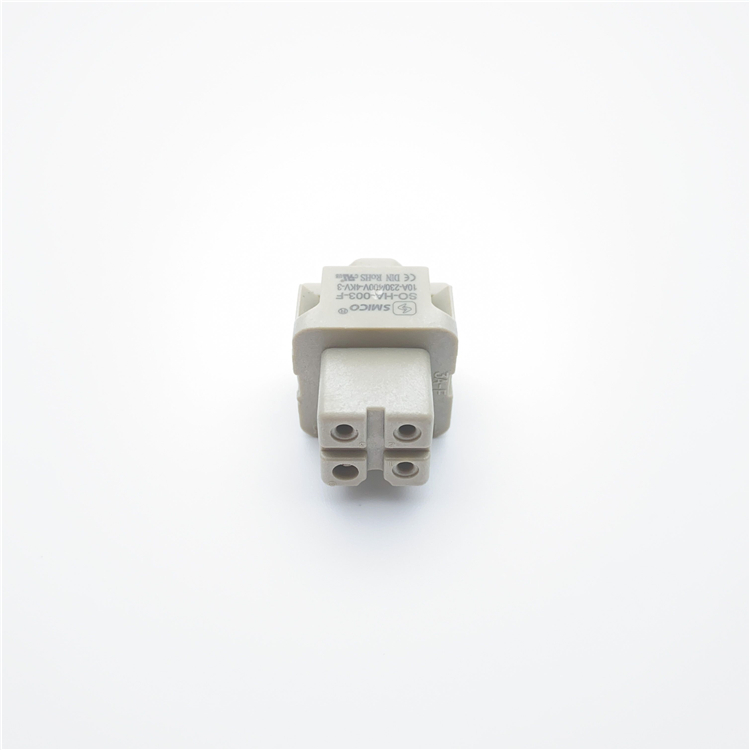

3 Pin Heavy Duty Connector same with Harting Han 3A Plug
- Part
- SO-HA-003-F
- Product Certification
- UL CUL CE ROHS DMT IEC-61984
- Order No.
- 09200032711
Innovative SMICO-Quick Lock termination technology with reduced wiring times, No special tools required, Insert suitable for all metal plastic hoods and housings of the sized H3A, For currents up to 10A
Product Detail
| Inserts | Suitable Shell:3AHood/Housing |
| Number of contacts | 3 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 230/400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 10A 250V 4kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
