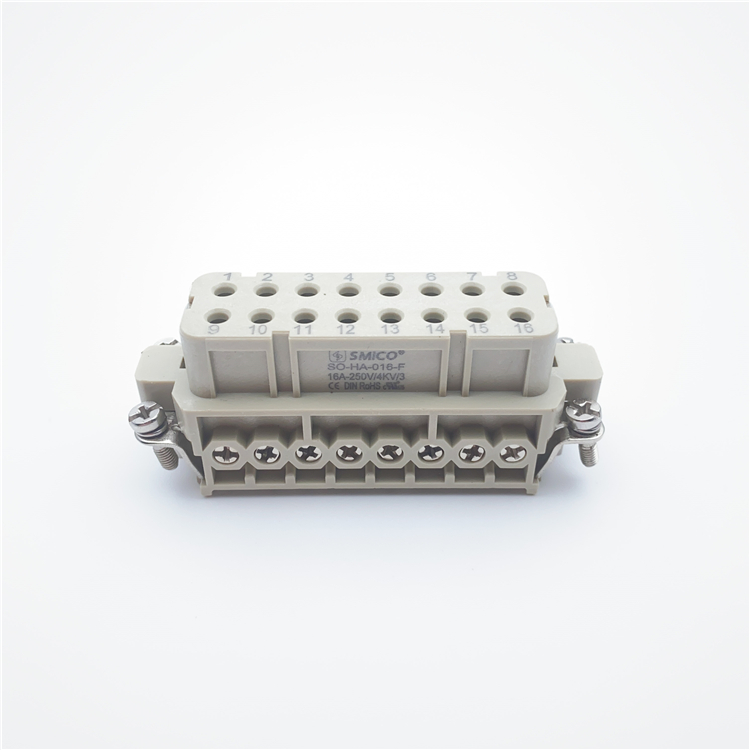

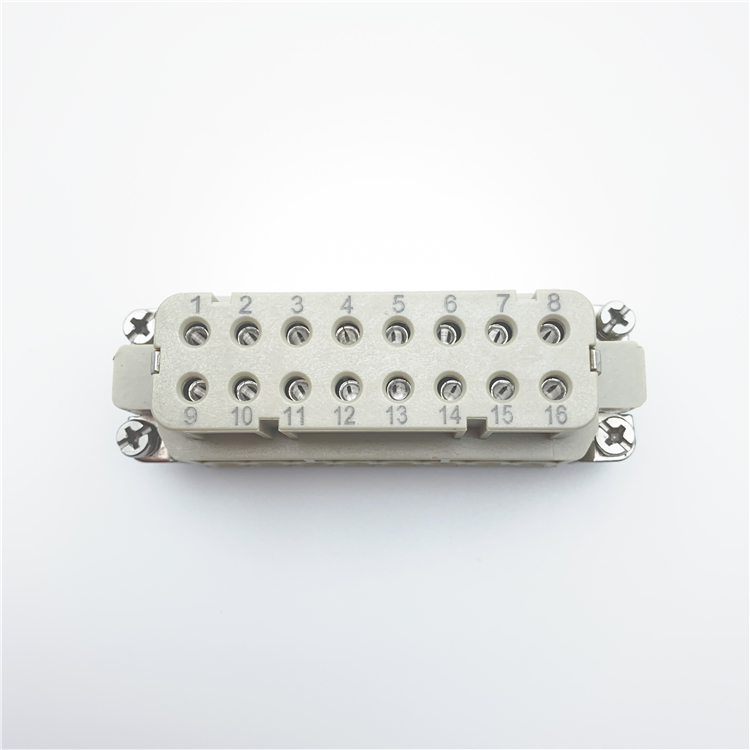

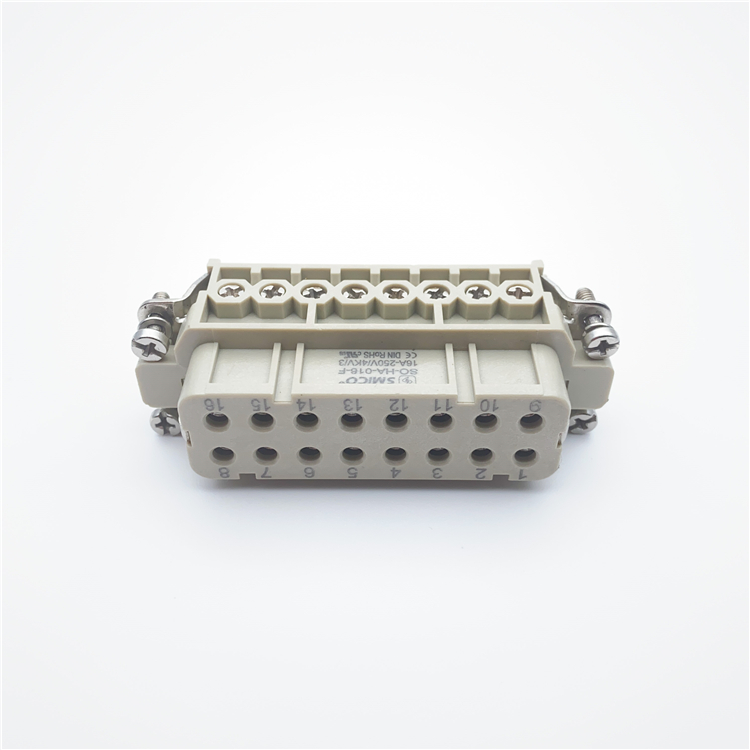

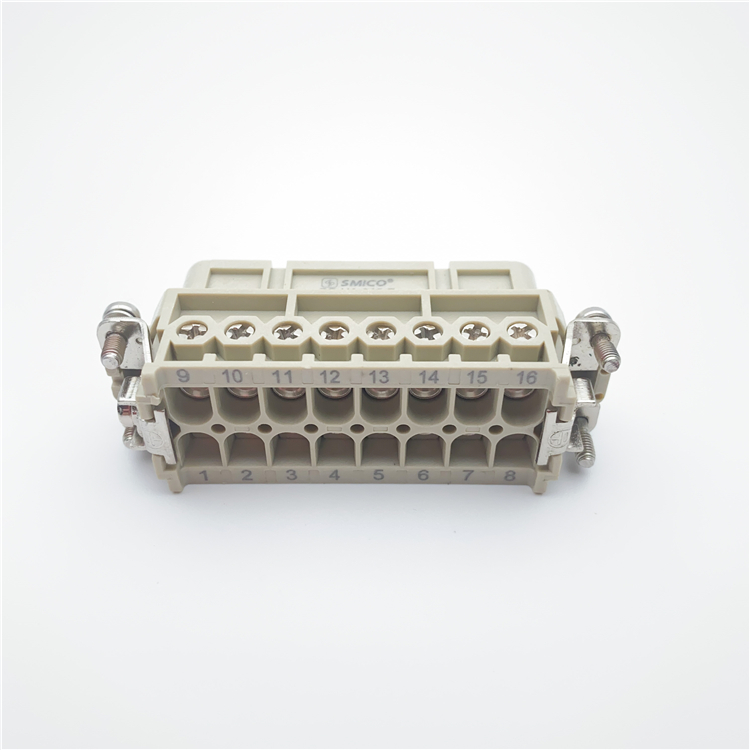

16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
- Part
- SO-HA-016-F
- Product Certification
- UL CUL CE ROHS DMT IEC-61984
- Order No.
- 09200162812
Small size, Available in crimp and screw termination, Screw termination also available with wire protection
Product Detail
| Inserts | Suitable Shell:16AHood/Housing |
| Number of contacts | 16 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
